本文實例為大家分享了Android實現圓角圖片的具體代碼，供大家參考，具體內容如下

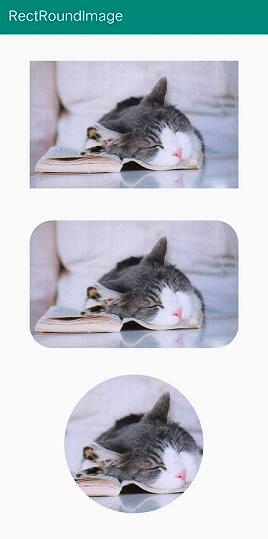

效果圖：

快速開始

activity_main.xml文件：

<?xml version='1.0' encoding='utf-8'?><android.support.constraint.ConstraintLayout xmlns:android='http://schemas.android.com/apk/res/android' xmlns:app='http://schemas.android.com/apk/res-auto' xmlns:tools='http://schemas.android.com/tools' android:layout_width='match_parent' android:layout_height='match_parent' tools:context='.MainActivity'> <ImageView android: android:layout_width='300dp' android:layout_height='200dp' android:layout_marginTop='30dp' android:src='http://www.4tl426be.cn/bcjs/@mipmap/image_bg' app:layout_constraintRight_toRightOf='parent' app:layout_constraintLeft_toLeftOf='parent' app:layout_constraintTop_toTopOf='parent'/> <ImageView android: android:layout_width='300dp' android:layout_height='200dp' android:layout_marginTop='30dp' app:layout_constraintRight_toRightOf='parent' app:layout_constraintLeft_toLeftOf='parent' app:layout_constraintTop_toBottomOf='@id/iv_img'/> <ImageView android: android:layout_width='200dp' android:layout_height='200dp' android:layout_marginTop='30dp' app:layout_constraintLeft_toLeftOf='parent' app:layout_constraintRight_toRightOf='parent' app:layout_constraintTop_toBottomOf='@id/iv_rect_img'/></android.support.constraint.ConstraintLayout>

MainActivity.class文件：

public class MainActivity extends AppCompatActivity { private ImageView ivRectImg, ivCircleImg; private Bitmap bitmap; private int width; private int height; @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_main); ivRectImg = findViewById(R.id.iv_rect_img); ivCircleImg = findViewById(R.id.iv_circle_img); bitmap = BitmapFactory.decodeResource(getResources(), R.mipmap.image_bg); width = bitmap.getWidth(); height = bitmap.getHeight(); rectRoundBitmap(); circleBitmap(); } // 圓角矩形 private void rectRoundBitmap() { RoundedBitmapDrawable bitmapDrawable = RoundedBitmapDrawableFactory.create(getResources(), bitmap); bitmapDrawable.setAntiAlias(true); bitmapDrawable.setCornerRadius(50); ivRectImg.setImageDrawable(bitmapDrawable); } // 把bitmap圖片進行剪切成正方形， 然后再設置圓角半徑為正方形邊長的一半即可 private void circleBitmap() { Bitmap circle = null; int min = Math.min(width, height); int max = Math.max(width, height); if (width == height) { circle = Bitmap.createBitmap(bitmap, 0, 0, width, height); } else { // 居中裁剪 if (width > height) {circle = Bitmap.createBitmap(bitmap, (max - min) / 2, 0, min, min); } else {circle = Bitmap.createBitmap(bitmap, 0, (max - min) / 2, min, min); } } RoundedBitmapDrawable bitmapDrawable = RoundedBitmapDrawableFactory.create(getResources(), circle); bitmapDrawable.setCornerRadius(min / 2); bitmapDrawable.setAntiAlias(true); ivCircleImg.setImageDrawable(bitmapDrawable); }}

以上就是本文的全部內容，希望對大家的學習有所幫助，也希望大家多多支持好吧啦網。
